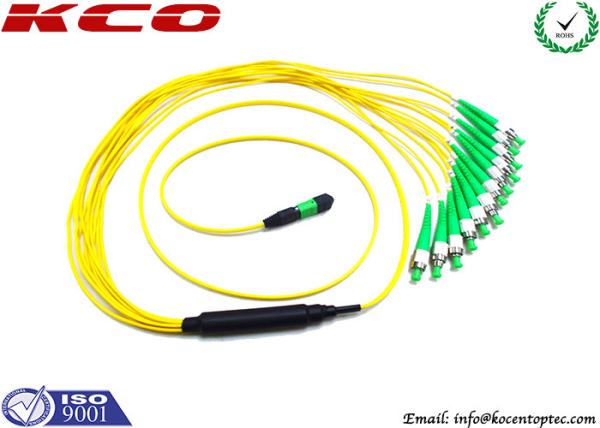

40G MTP MPO Fiber Breakout Cable FC APC 12 Optical Fiber Jumpers
MTP/MPO fiber breakout cable descriptions:
- MPO series offers the solution from trunk cables to extended
trunk cables, to hybrid trunk cables, to cassette modules,
to MPO adapter panels, to direct patch panels, to patch panels in
both MPO classification of G class (normal class) and L class
(super low loss).
- MTP/MPO harness cable, also called MTP/MPO breakout cable or
MTP/MPO fan-out cable, is a fiber optic cable terminated with
MTP/MPO connectors on one end and MTP/MPO/LC/FC/SC/ST/MTRJ
connectors (generally MTP to LC) on the other end.
- The main cable is usually 3.0mm LSZH Round cable, breakout 2.0mm
cable.
- Female and Male MPO/MTP Connector is available. Male type
connector has pins.
- MTP/MPO harness cables are designed for high density applications
requiring high performance and speedy installation.
- Harness cables provide a transition from multi-fibers cables to
individual fibers or duplex connectors.
- The MTP/MPO harness cables are terminated with MTP/MPO connectors
on one end and standard LC/FC/SC/ST/MTRJ connectors (generally MTP
to LC) on the other end. Therefore, they can meet a variety of
fiber cabling requirements.
- All Kocentoptec's MPO/MTP fiber patch cable is compliant to
IEC-61754-7 and TIA-604-5(FOCIS-5) Standard.
- We can do Standard type and Elite type both.
- For the jacket cable we can do 3.0mm round cable also can be flat
jacketed ribbon cable or bare ribbon MTP cables.
- We can offer Single mode and Multimode MTP fiber optical patch
cables, custom design MTP fiber optic cable assemblies, 9/125,
50/125, 62.5/125, SM, MM, 8 cores, 24core MTP/MPO patch cables,
48core MTP/MPO patch cables all is available.
Features:
- High return loss;
- Low insertion loss;
- Good repeatability and exchangeability;
- Excellent Polished and 100% tested;
Applications:
- FTTH, CATV, LAN, MAN, WAN, Test & Measurement
- Video transmission, Data transmission
- Active Device Termination
- Premise Installations
- Telecommunication and Data processing Networks
- Industrial, medical & military
- Systems Integration for Long Haul, Metro and Access Network
About MTP/MPO fiber breakout cable:
- MPO/MTP OM3 3.0mm fiber optic breakout cables
- MPO/MTP-LC fiber optic harness patch cables
- MTP is the high dense degree of optical fiber pre-connect
system,which is generally use in three areas.
- The Data Center application with high dense degree environment
- The optical fiber to the building
- The internal connector application in fiber equipment.
MTP/MPO fiber breakout cable Testing:
MTP/MPO Connector Specifications:
| Type | Single Mode | Single Mode | Multi Mode |
| (APC Polish) | (UPC Polish) | (PC Polish) |
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. |
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. |
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | | Low Loss | | Low Loss | |
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
| Insert-pull test | 1000 times＜0.5 dB |
| Interchange | ＜0.5 dB |
| Anti-tensile force | 15kgf |
Ordering Informations:
MPO/PC–MPO/PC-SM-12CORE–2M-LSZH
① ② ③ ④ ⑤ ⑥
Notices:
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
④Fiber Quantity: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥ Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum
